Electrical inspection systems for PCBAs after SMT assembly. The range covers ICT component inspection, ISP data programming and FCT functional testing. All three functions can also be combined in one custom system.
Related equipment brands
TAKAYA × LDE
A fixtureless ICT system developed jointly by TAKAYA and LDE. Multi-axis probes contact PCB pads directly to measure component values and check for opens and shorts. No dedicated test fixture is required.
LDE Equipment

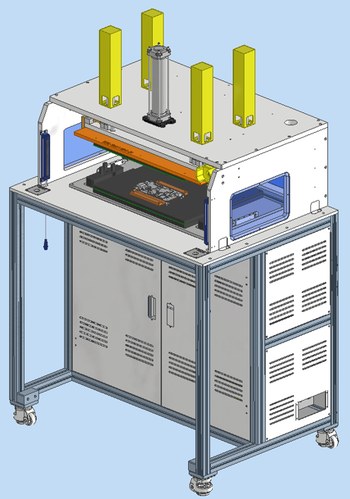

LDE bed-of-nails ICT system with automatic conveyor loading. It checks opens, shorts and component values using a dedicated model jig for each board specification.
SMH × LDE

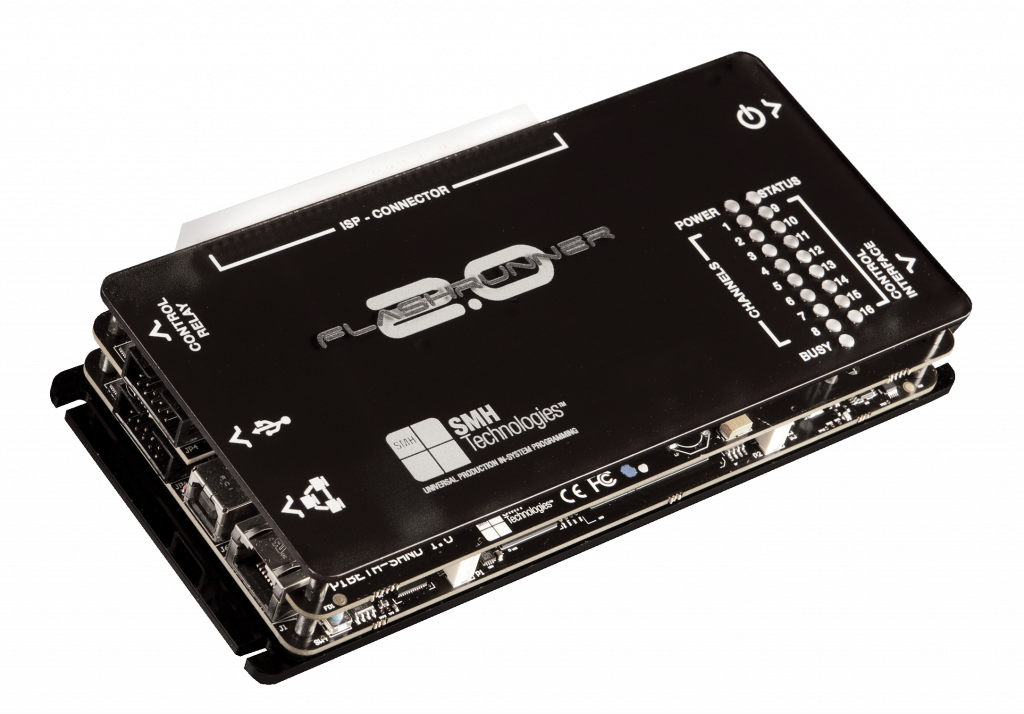

A parallel ISP programmer supplied by SMH Technologies and LDE. Independent channels program multiple boards at the same time. An embedded Linux controller handles line automation.

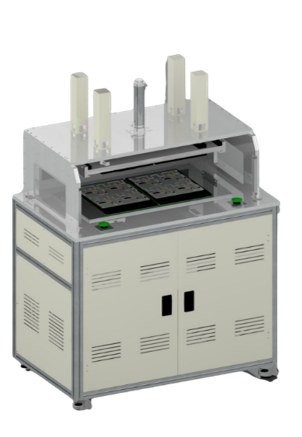

LDE Equipment (CAD)
LDE-designed ISP system for multiple communication protocols. Cylinder actuation and sensor-based alignment position the board for programming. MES and ERP connections provide production records.
LDE Equipment

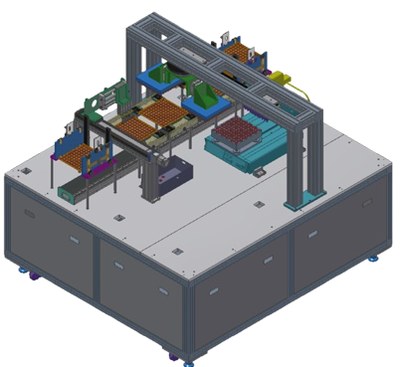

FCT system for eddy-current inspection of lithium-ion battery cap welds. The handling system inspects one tray of 100 batteries at the same time.
LDE Equipment (CAD)

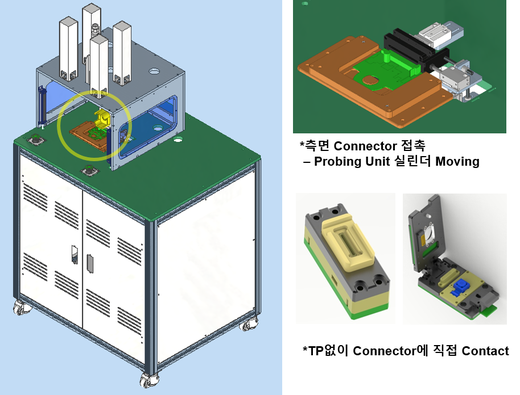

ICT, ISP and FCT are combined in one machine to match the board and production process. The system can be configured with only the required test functions to reduce installation space.
