Jigs and fixtures for electrical and display inspection. The range includes PCBA fixtures, display fixtures, test sockets and FPCB connector jigs made for each product and process.
Related equipment brands
LDE Equipment

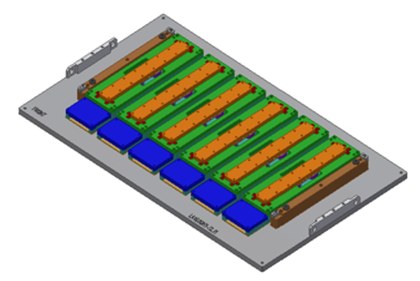

Secures the PCBA and maintains contact with the test pins. ICT contact blocks and FCT connector or pogo-pin configurations are made for each board specification.
LDE Equipment

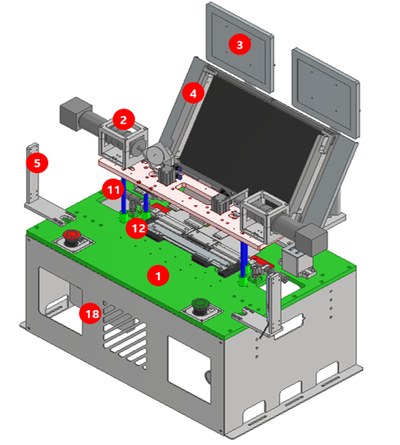

Aligns and secures a display module for image inspection. Multiple monitors show the inspection screens in real time. Pattern-generator signals are used to check line and color defects.
LDE Equipment (CAD)

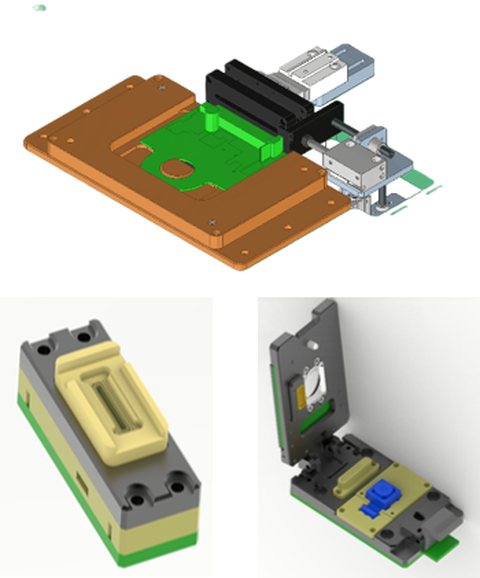

Clamshell test socket for individual ICs, sensor modules and other small components. The pocket and contact pins are made to match the component and can be installed in fixture or FCT lines.
LDE Equipment (CAD)

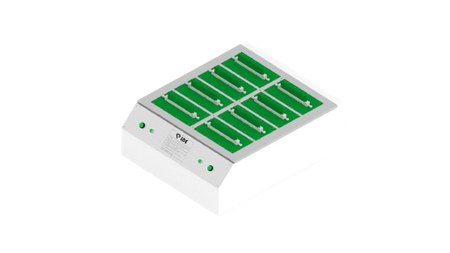

Contact unit for simultaneous connection to multiple PCI-style sockets. The tray-format contact array supports batch inspection and programming.
LDE Equipment (CAD)

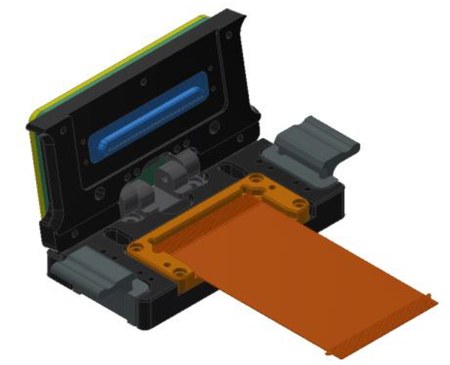

Aligns an FPCB with the connector surface and pin positions before connection. The fixed process reduces handling variation and FPCB damage caused by repeated manual connection.
LDE Equipment (CAD)

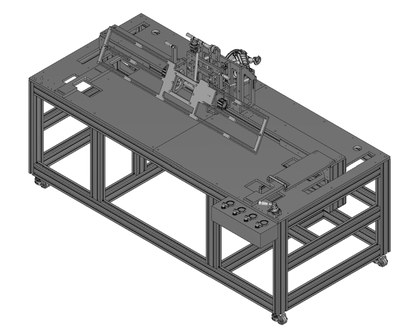

Pickup and flip jig for appearance inspection of very large displays. Operators can inspect the front and rear surfaces without directly handling the panel.
LDE Equipment (CAD)

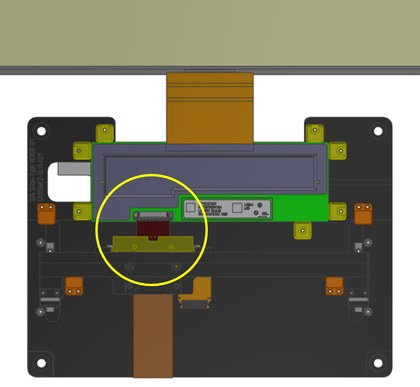

Automatically aligns and inserts an FPCB into its connector. The fixed insertion process reduces variation and shortens the connection cycle compared with manual work.
